TORQUE CONTROL SOLUTIONS
Focus on
Alltorque Control Systems has been specializing in torque monitoring and control for over 7 years. We are proud to be a part of the excellence in integrity that characterizes the culture of our parent company, Allweigh Scale Systems.
- Oilfield software has a reputation of making anyone that actually knows how to use it, the portentous “Computer Guy”. Our software is equipped with a friendly interface and works exactly how users would expect it to.
- Menu functions are available in a logical order that one would find “natural”. So if you know how to operate power tongs and you’ve figured out your smart phone, congratulations, because you have the skills required to be an Alltorque Computer Guy.
- Instead of making our customers pay for software updates, we give it to them for free. Simply click the ‘Update Now’ button in the Alltorque software and you’ll be updated in minutes, even with a poor internet connection.
- System Monitors and Controls Torque, Turns & Rotation speed during make-up
- Live graphing of Torque & Rotations & RPM
- Live display of Torque, Rotations & RPM
- Built in System dump valve release on Torque
- Built in System dump valve release on RPM. Stops over RPM during make-up
- System requires only one operator to run computer and tong.
- Once job is started the unit runs live and continuous and does not need constant attention
- Optional Remote Display – shows live Torque and dump status – on rig floor
- Optional Remote Monitor – shows live graph, Torque, turns & RPM
- Job files stored in database – (No Data Tampering possible.)
- Job file exportable to PDF
Digital Torque Gauges
Adjustable handle (arm) length feature will cover your operations !
- Our range of digital torque gauges arrived at a critical time, the industry is in great need of this! The expertise and experience does not anymore exist on ground level to maintain, service or calibrate hydraulic torque gauges.
- Can be mounted directly to the tong or to the derrick leg to view live torque.
- Comes with adjustable handle length feature
- Direct replacement to the older hydraulic gauges
- Works with both tension and compression load cells
The Digital Torque System uses a Digital Torque Indicator to replace analog or hydraulic gauges typically used on power-tongs or top-drives. Although the initial costs for digital units are higher, the fewer maintenance costs and improved accuracy and reliability outweigh the costs.
DTS – Peak
- All DTS – Basic Features
- Joints stored in Internal Memory
- Software for Downloading and Accessing Job Data and Indicator Programming/Setup
- Optimum Torque and Over Torque LED Indicators
DTS – Dumping
- All DTS – Basic and DTS – Peak features
- Pre-settable Dump Point
- Includes Dump-Valve Assembly
- Can Automatically Dump Hydraulic Pressure to Power Tongs

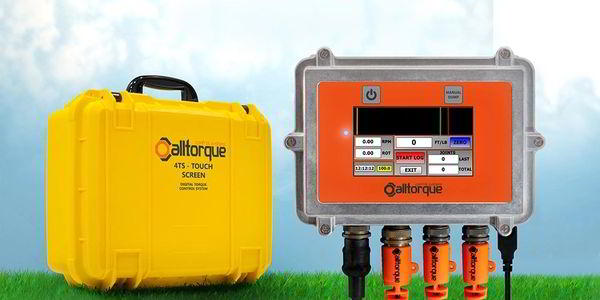

4TS – Touch Screen
- User Friendly Customized Software
- Displays Torques, Turns and RPM on a 4” Touch Screen
- Unit Can run continuous for 36 hours and Dump Hydraulic Valve Over 400 Times on a Single Charge
- Easily Navigable Operating Screens
- Optimum Torque and Over Torque LED Indicators
- Pre-settable Dump Point
- Includes Full Dump-Valve Assembly
- Can Automatically Dump Hydraulic Pressure to Power Tongs when optimum torque has been reached
- Works with both tension and compression load cells
- Joints stored in Internal Memory
- Software for Downloading and Accessing Job Data and Indicator Programming/Setup
- Programmable handle length

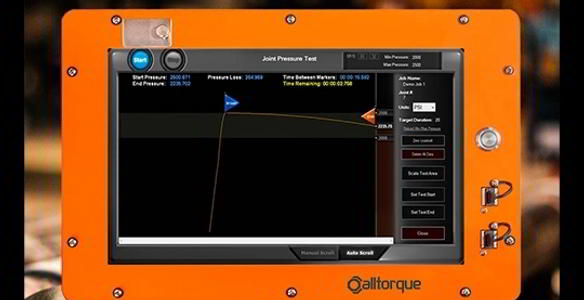

TS – Pressure Testing
The TS – Pressure Testing System is the complete package for those who need an all-in-one system that can seamlessly control, monitor and record torque and pressure data.
- Includes Computerized Torque Control System Includes 5000 PSI Pressure Transducer (1/4” NPT Male Fitting) & 50’ Cable
- The computer software is set up to test individual connections or do a final pressure test at the end of a casing job.
- This pressure testing system tests the integrity of the connections being put together.
- It monitors a starting pressure and an end pressure and determines if the pressure loss over a specified length of time.
- Perfect for Leak Testing in Gas Field Applications
- Live graphing of pressure test
- Can pressure test each individual joint connection
- Records and stores all pressure test data
- Customizable Pressure Test Length
- Customizable Optimal Pressure Region
Technology
- Hydrostatic testing has been used in the oilfield for well over 50 years. It is a full joint test that is capable of detecting a variety of flaws and leaks. When employed above Maximum Operating Pressure (MOP), hydrostatic testing is an excellent indication of pipe integrity. Unlike other technologies, hydro-testing is able to locate defects in the upset, collars, and threads. Performing this test as pipe is run into the hole is especially useful because the connections are verified as they will be during production. For example, if the well servicing crew happens to over/under torque a connection, the resulting leak is easily identified by the hydrostatic operator. The most obvious limitation of hydrostatic testing is its “pass or fail” nature. If it were known that a section of pipe barely passed the hydrostatic test, it would make sense to remove it from the production string. Lacking that capability, it is advantageous to find a complementary method to determine long term sustainability.
